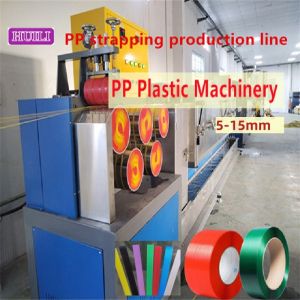

PP strapping belt making machine single screw PP strapping belt
production line automatic PP strap machine
PRODUCT DESCRIPTION OF PP STRAPPING BELT MAKING MACHINE
PP strapping belt making machine is used to produce PP strapping belt for strapping and packaging.
It adopts PLC control, and the whole production line realizes
automatic production. It uses special screw and pressure sensor for
PP extruder to ensure stable production and strapping tape quality.
You can use 100% recycled pp flakes or virgin materials or mix them with each other.
Raw materials------
100% polypropylene new material or recycled material, or a
combination of.
FEATURES
Line speed------The finished product line speed can reach 200-300 m/min, high speed, intelligent operation.
Winding machine------- PP strapping equipment can be equipped with a fully automatic
winding machine or a semi-automatic winding machine (customers
should choose according to their own requirements)
EXTRUSION PARAMETERS TABEL
| Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
| Raw material | PP polypropylene new material/recycled material |
| Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
| Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
| Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Line speed(m/min) | ≧260-300 |
| PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
| Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
| Drying barrel (kg) | 100 | 150 | 200 | 200 | 200 | 200 |
| Winding machine | Automatic winding machine /Semi-automatic winding machine |
| Screen Changer | Automatic/Manua |
| Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
Features of embossing wheel:
1. The embossing wheel is nitrided and heat-treated to achieve a
surface hardness of 60 degrees, which is strong and durable. The surface texture of the strapping
belt pressed out by this embossing machine is clear and rough
enough, and the automatic strapping machine uses strong belt
feeding.
2. The upper and lower flower wheels of the embossing machine are equipped with synchronous gears to ensure
synchronous rotation of the upper and lower wheels, ensuring that the flower spinning
on both sides of the strapping tape is completely consistent,
increasing the beauty and transparency of the strapping tape.
3. When assembling the upper and lower flower wheels, a fixed gap
is left to prevent collision, which extends the service life of the flower wheels.
PP strapping tape is suitable for baling machines:
Fully automatic strapping machine
Semi-automatic strapping machine
High-speed ultra-thin strapping machine
Handheld electric strapping machine
Manual strapping machine (iron buckle)
About th SERVICE:
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of
services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP belt making machine.
3.Raw materials that can be used for PP belt making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FAQ:
Q:What is the voltage of PP strapping belt making machine?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt?
A: L:36 M.
Q:Where is the PP strapping belt making machine produced?
A:We are from China.
Q:Can PP strapping belt making machine provide after-sales service?
A:Yes, we have professional after-sales engineers who provide
24-hour online guidance.
Q:Is the quality of PP strapping belt making machine stable?
A:We have 30 years of manufacturing experience, and have their own PP strapping belt making machine plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping belt making machine support customization?
A:We are a manufacturing plant that can customize model size,
extrusion capacity, voltage and so on according to customer
requirements.
Q:What does the wrapping machine part of the PP strapping belt making machine look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping
machine.
